Wave Wood

Vicoustic - Wave Wood

Vicoustic’s flagship Wave Wood panel has been specifically developed to treat acoustic problems without destroying a room’s ambience, or over-deadening the sound. It can be used in control rooms, broadcast studios, live rooms where a range of instruments and voices are recorded, rehearsal rooms and other performance spaces.

Wave Wood is made from a combination of acoustic foam and wood. Its instantly recognizable design results from unique research based on the acoustic properties of the wood and foam combined with non-linear sequential cavities that enable Wave Wood to act as both an absorber and diffuser. It is particularly effective in treating medium and high frequencies as well as solving issues such as flutter echoes. Wave Wood can also be highly effective in controlling low frequencies when fitted in the corners of a room and used as a bass trap.

The panel’s elegant design enhances the visual appearance of any room, with five different wood finishes available to match a range of studio interiors.

Now available in 1200 x 600 x 64 mm panels, the Wave Wood 1200 has the same perforated surface and performance but is especially indicated for spacious areas.

About Vicoustic’s Absorption and Reflection Control System (ARCS)
ARCS is Vicoustic’s unique research model that has formed the basis for developing hybrid products such as Wave Wood. Click here to find out more about ARCS

Features

  • Many applications
  • Diffusion and absorption panel
  • Used to treat high and medium frequencies on walls
  • Used as a bass trap on corners for low frequencies
  • 10 units per box
  • Available in 5 finishes:

Vicoustic - Wave Wood, all colours

Product Technical Information

Material: Acoustic foam and wood
Product Dimensions: 60 x 60 x 6.2cm
Fire Rating: Acoustic foam – M1
Color: Available in Black, White, Nordik, Light Brown and Cherry finishes
Installation: Vicoustic FlexiGlue

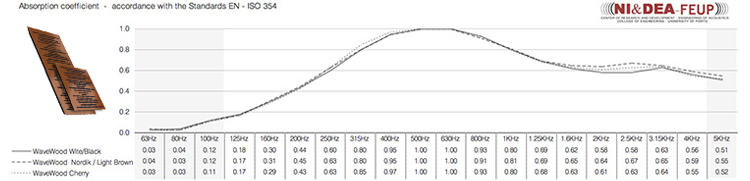

Vicoustic - Wave Wood, absorption vs frequency

Applications

Recording and Broadcast Studios, Post Production Studios, Performance Spaces, Rehearsal Rooms.

More Information

Wavewood – Church Case Study
Installation Procedure – Wave Wood
White Paper – Wave Wood
Wavewood – Technical File
