Outstanding Features
- Rugged stainless steel chassis
- High quality EI transformers and components
- Innovative tube circuitry with choke coil
- Balanced line input and output
- Switching between in phase and out of phase
- All tube MM and MC phono stage
- Adjustable cartridge loading and gain
Specifications
- Output Level: 2 – 20V P-P Max.
- Output Impedance: < 2k ohm
- Frequency Response: 20Hz – 100kHz +/-1dB (2V P-P)
- Total Harmonic Distortion: < 0.2% 20Hz – 20kHz
- Input Impedance: Line in – 68k ohm
- Phono – 47k ohm (MM) or 3 ohm – 100 ohm (MC)
- Input Sensitivity: Line in – 150mV
- Phono – 3 – 10mV (MM) or 0.3 – 1mV (MC)
- Input Mode: RCA (MM / MC)
- RCA and XLR (Line inputs)
- Signal-to-noise Ratio: > 86dB (Line output)
- > 50dB (MC output)
- > 65dB (MM output)
- Channel Balance: < 0.7dB 20Hz – 20kHz
- Channel Separation: > 65dB (1kHz – 3.3 kHz)
- Vaccum Tubes: 4 x 6N9P (6SL7 or ECC35)
- 4 x 300B
- 2 x 12AX7 (ECC83 or 4004)
- 2 x 6922 (6DJ8 or ECC88)
- Dimensions (W x H x D): 405 x 475 x 215 mm
- Net weight: 21 kg
- Dimensions (W x H x D): 372 x 372 x 215 mm
- Net Weight: 20.5kg
Reviews

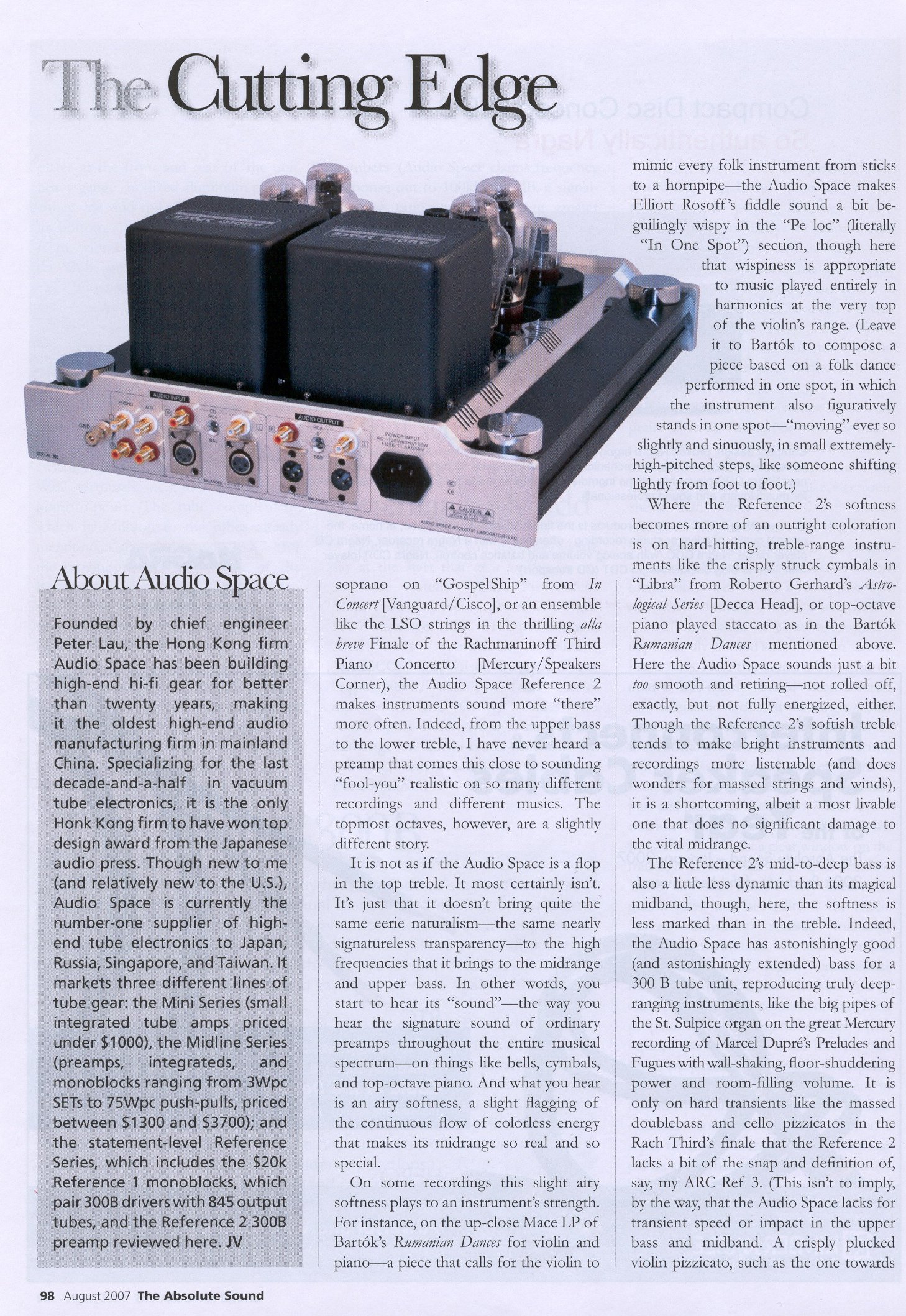

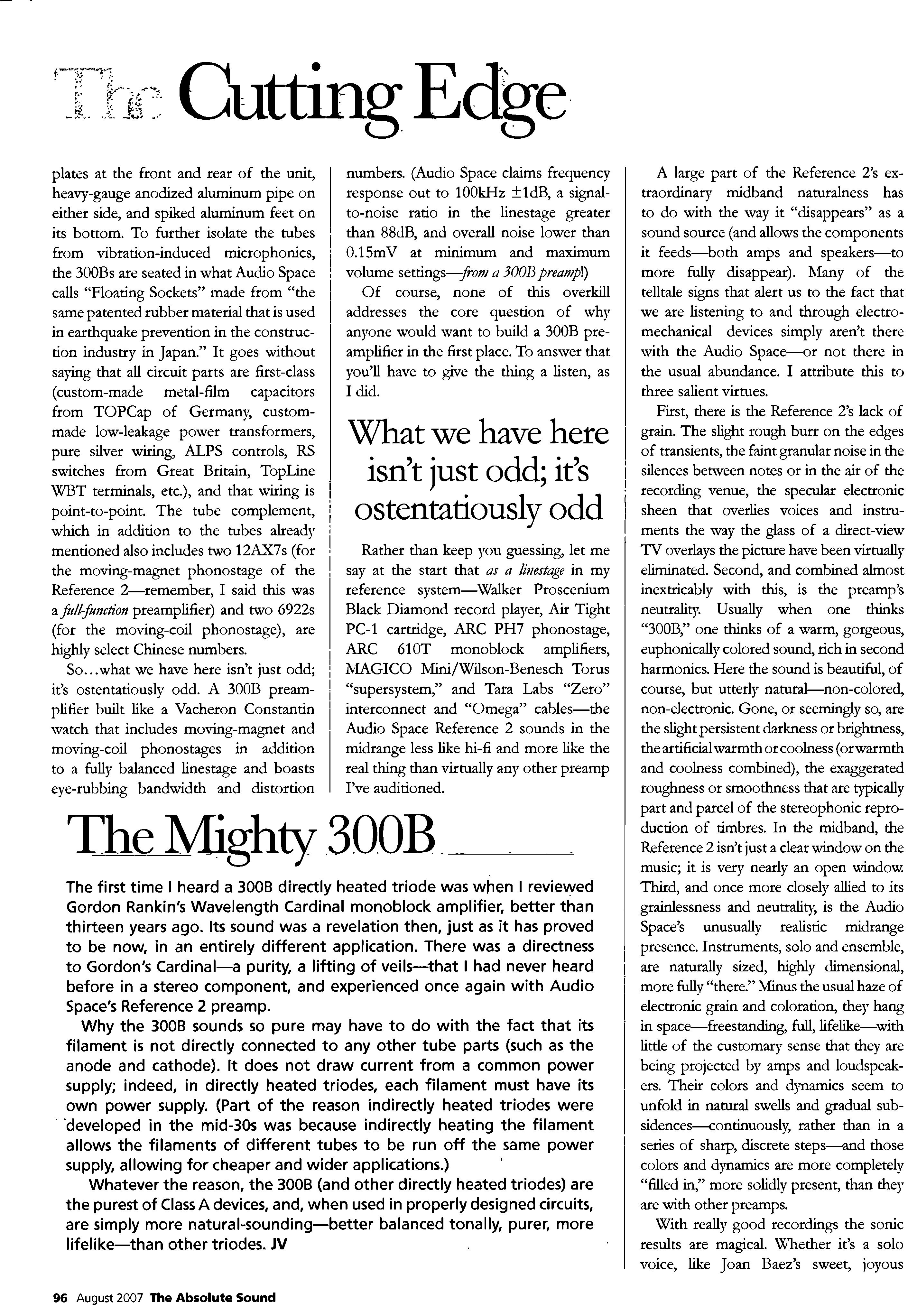

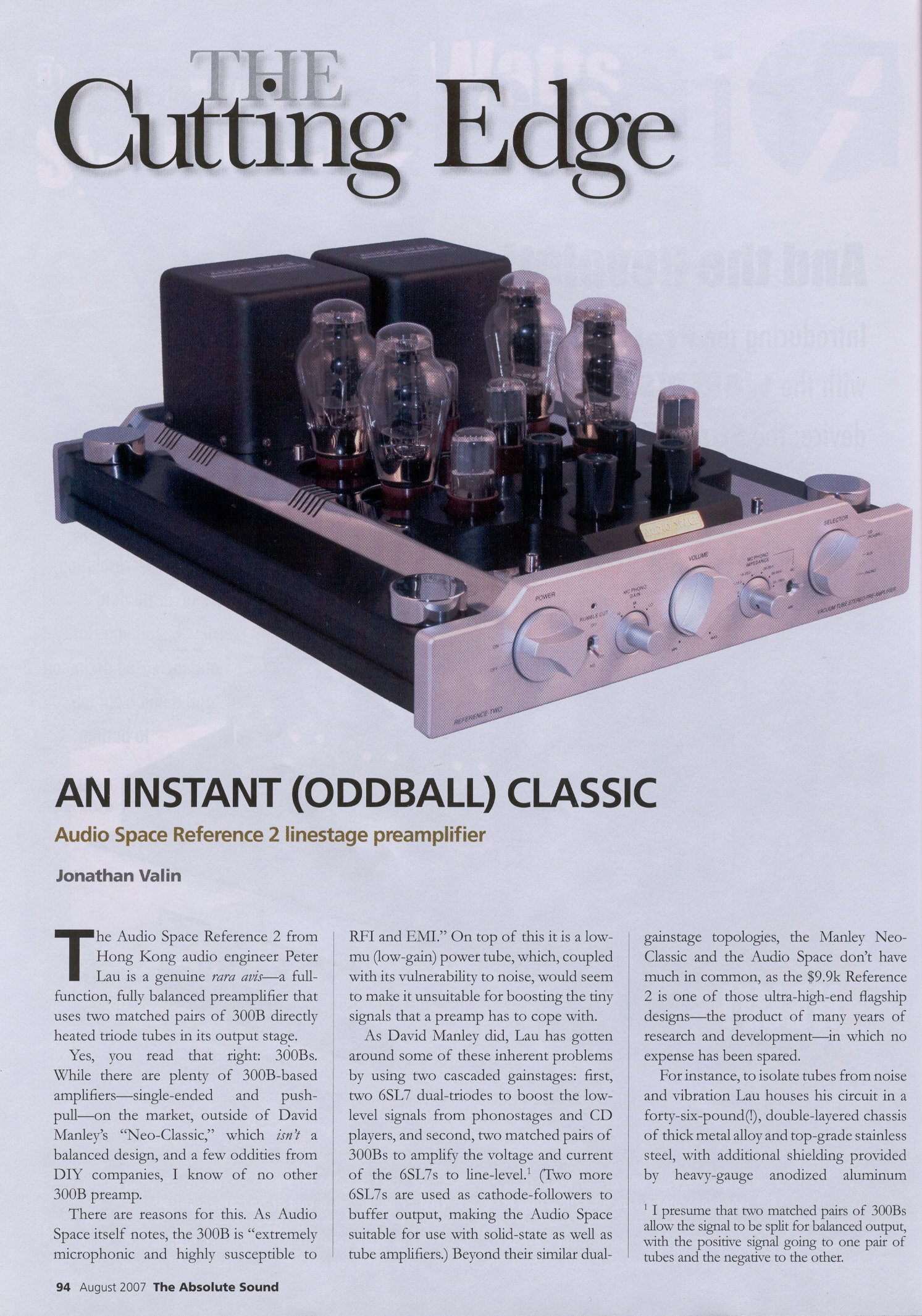

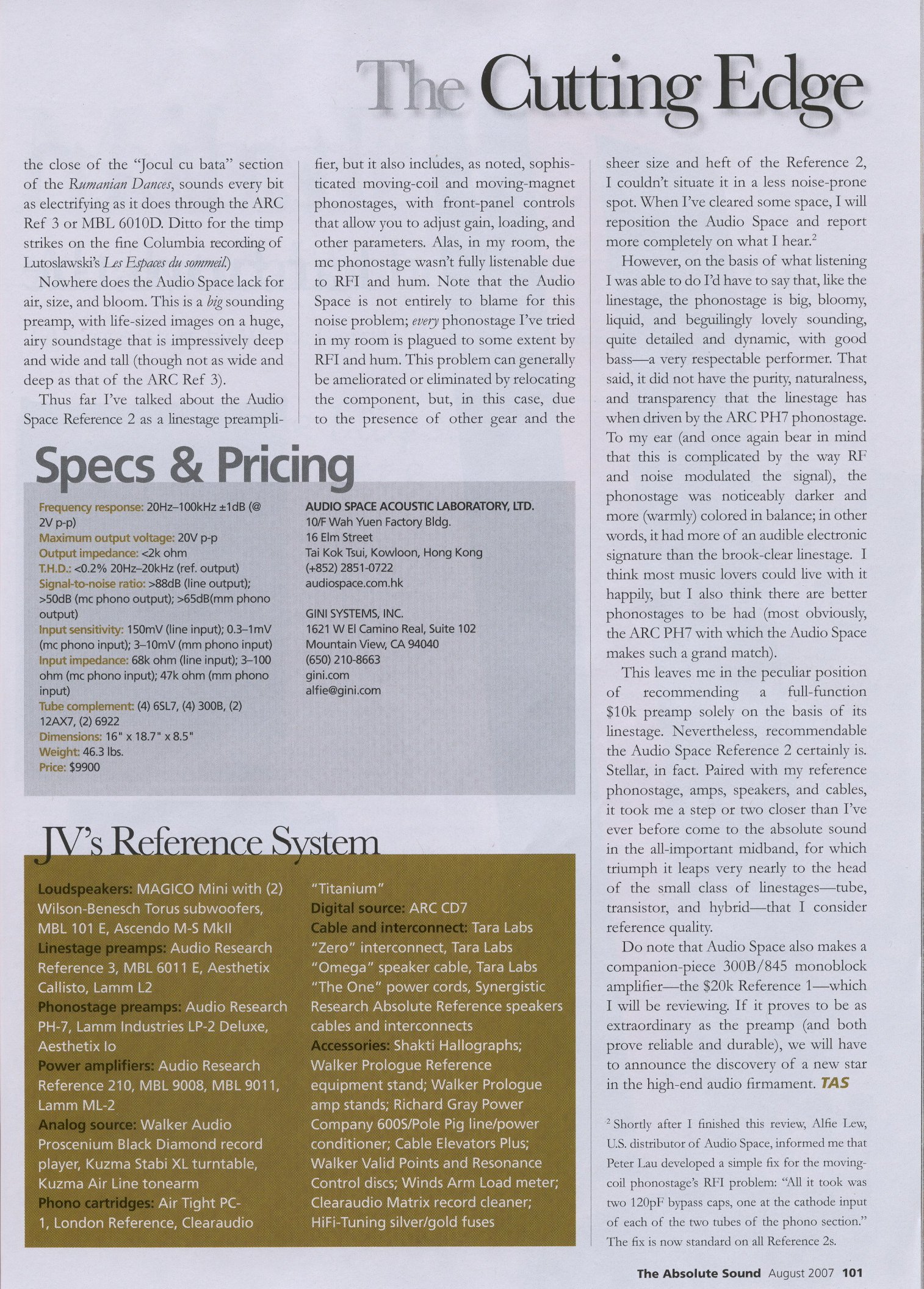

- Scans of The Absolute Sound review of Audio Space Reference Two tube preamplifier (Golden Year Award 2007)
Page 1 Page 2 Page 3 Page 4
